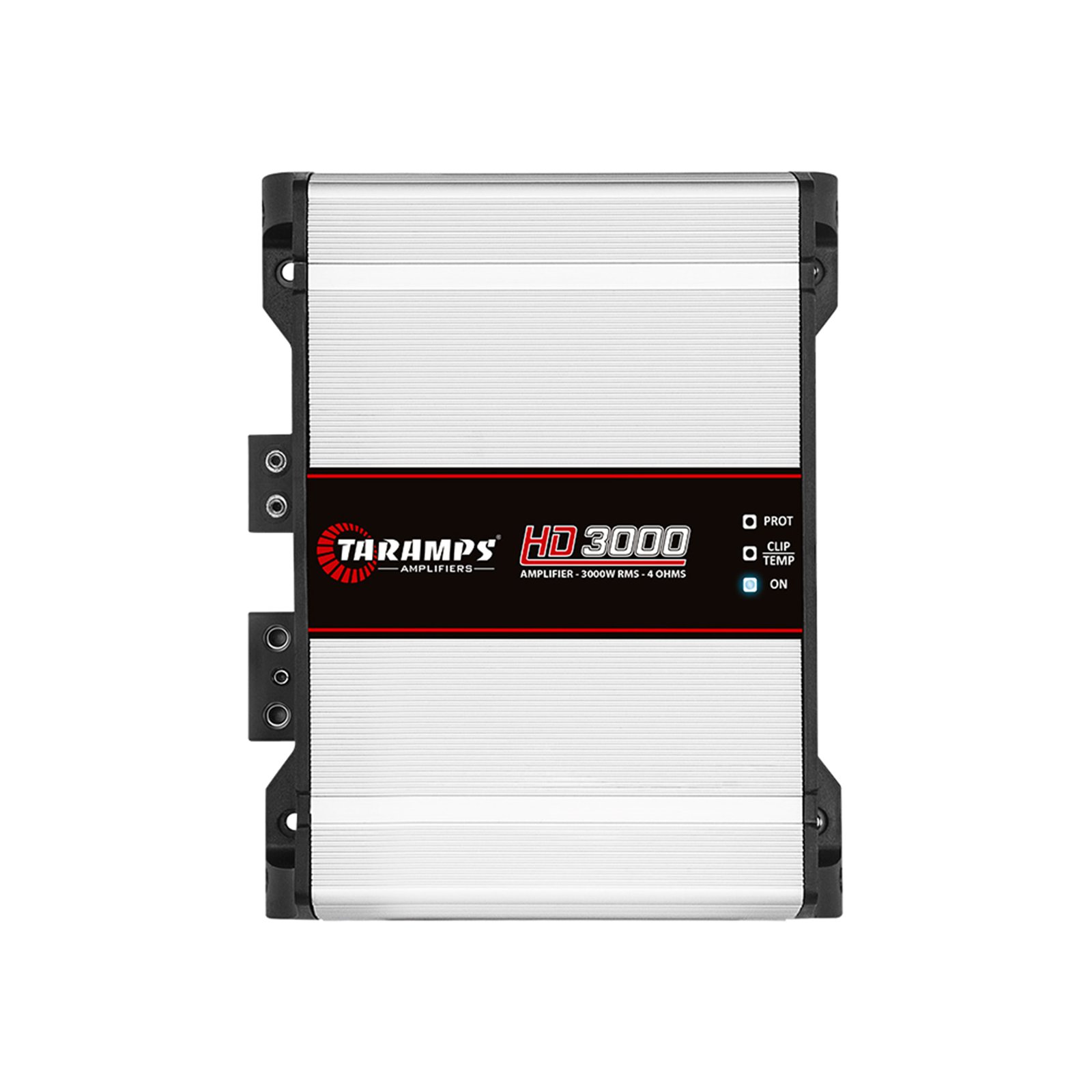

HD 3000 1 Ohm Class D Full Range Mono Amplifier Taramp

Number of Channels: 01
Maximum Power:
@ 13.8 VDC – 1 OHM: 3575W RMS
@ 13.8 VDC – 2 OHMS: 2355W RMS
@ 13.8 VDC – 4 OHMS: 1365W RMS
@ 12.6 VDC – 1 OHM: 3000W RMS
@ 12.6 VDC – 2 OHMS: 2025W RMS
@ 12.6 VDC – 4 OHMS: 1140W RMS
Input Sensitivity: 230mV
Signal to Noise Ratio: > 89dB
Frequency Response: (Full Range): 10Hz to 20kHz
Crossover High Pass (HPF): Variable: 10Hz to 80Hz (-12dB / 8th)
Crossover Low Pass (LPF): Variable: 80 Hz to FULL
Bass Boost: 0 to 10dB (50Hz)
Input Impedance: 18K OHMS
Short / Short Supply Protection System / High / Low Supply Voltage
Maximum Supply Voltage: 16 VDC
Consumption at rest: 1,80 Amp.
Maximum Musical Power: @ 12.6VDC: 150.5A
Maximum Sine Signal Consumption: @ 12.6 VDC: 301A
Dimensions (WxHxD): 229 x 65 x 186mm ** Warranty information on the manufacturer’s website.**
